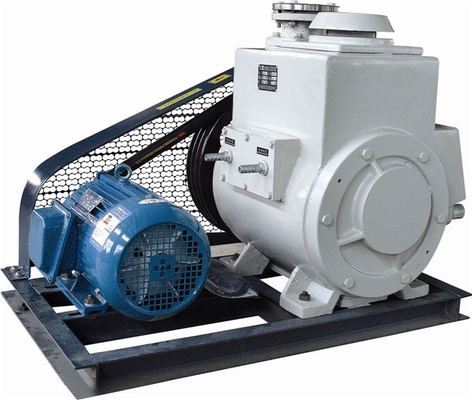

Sewage 2X Series Vacuum Double Stage Rotary Vane Pump

Product Application

The 2X series Vacuum Pumps(call "vacuum pump" hereinafter) be used for taking the gas out of particular sealed container, in order to make the container to acquire vacuum.Suitable for Metallurgy, Chemical Engineering, Petroleum, Medical Treatment, Produce Medicine, Print, Electric Appliances, The Electric Vacuum,Semiconductor, Food packing, A-energy, Spinning, Researching Organization etc.

The Vacuum Pump is made of ferrous metal and belong to precise equipments. The main parts of the vacuum pump immerse in the special vacuum oil.Therefore, it is unfit to used for taking out poisonous gas, volatile gas, high oxygen gas, caustic gas which can fret black metals or effect the vacuum pump oil. Also it can not used as compressor or transport pump.

Main Features

1. The structure of 2X series vacuum pumps are basically the same. The pump's rotor ran by V belt from the electric motor. Electric motor and pump are fixed on chassis with screws.
2.Vacuum Pump is made up of pump body, high-pressure rotor, low-pressure rotor, front end-plates, back end-plates, high-pressure rotary vane, low-pressure rotary vane, exhaust valve, exhaust cover, observation mirror etc.
3.A septi-board is pressed into the pump's body and divided the pump's body into high vacuum room and low vacuum room, each room has exhaust vent, high vacuum room's exhaust vent connects low vacuum room's entry.
4. Head axletree extended from high pressure rotor. Back axletree extended from low pressure rotor.
