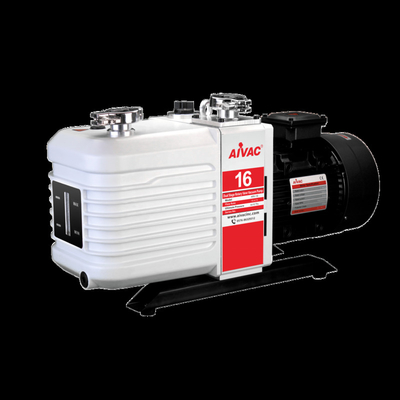

Reliable Lab Rotary Vane Two Stage Vacuum Pump For LABORATORY And Instrument Manufacturer Price

1.0 Pieces
MOQ
Reliable Lab Rotary Vane Two Stage Vacuum Pump For LABORATORY And Instrument Manufacturer Price
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Model Number: ARV
Application: Lab, Refrigeration Compressor Production Line, Scanning Electron Microscope, Rotary Evaporator, Freeze Drying, Distillation, Vacuum Oven, Glove Box, Spectrometer, Plasma Cleaner, Engineering Application, Back Pump For Roots Turbomolecular Pump, Leak Detect
Horsepower: 0.55-3KW
Power Source: Electric
Pressure: Other, AC
Structure: Double-stage Pump
Voltage: 220V/3880V
Power: 0.55-3KW, Electric
Usage: Air Pump
Theory: Vacuum Pump
Standard Or Nonstandard: Standard
Color: Silver Black OEM Color
Fuel: Vacuum Pump Oil
Certification: Ce
Basic Infomation
Certification: ce
Model Number: ARV
Payment & Shipping Terms
Packaging Details: pallet
Supply Ability: 100 Piece/Pieces per Month
Product Description
Model
ARV-4
ARV-8
ARV-16
ARV-24
Flow Rate
M³/h(L/s)
50Hz
4(1.1)
8(2.2)
16(4.4)
24(6.7)

60Hz
4.8(1.3)
9.6(2.7)
19.2(5.3)
28.8(8)
Ultimate partial Pressure gas ballast close(Pa)
4x10-2
4x10-2
4x10-2
4x10-2
Ultimate total Pressure gas ballast close(Pa)
4x10-1
4x10-1
4x10-1
4x10-1
Ultimate total Pressure gas ballast open(Pa)
8x10-1
8x10-1
8x10-1
8x10-1
Power supply
single/3-phase
single/3-phase
single/3-phase
single/3-phase
Rated Power（KW）
0.75/0.55
0.75/0.55
1.1/0.75
1.1/0.75
Inlet Flange
KF25
KF25
KF25
KF25 or KF40
Exhaust Flange
KF25
KF25
KF25
KF25 or KF40
Oil Capacity (L)
min 0.6-max 1
min 0.6-max 1
min 0.9-max 1.5
min 1.2-max 2
Moter Speed
(RPM)
50Hz
1440
1440
1440
1440
60Hz
1720
1720
1720
1720
Operation Temp(℃)
5-40
5-40
5-40
5-40
Noise Level(dB)
≤56
≤56
≤58
≤58
Weight（kg）
23
25
30
35
Model
ARV-30
ARV-50
ARV-70
ARV-90
Flow Rate
M³/h(L/s)
50Hz
30(8.3)
50(13.9)
70(19.4)
90(25)
60Hz
36(10)
60(16.7)
84(23.3)
108(30)
Ultimate partial Pressure gas ballast close(Pa)
4x10-2
4x10-2
4x10-2
4x10-2
Ultimate total Pressure gas ballast close(Pa)
4x10-1
4x10-1
4x10-1
4x10-1
Ultimate total Pressure gas ballast open(Pa)
8x10-1
8x10-1
8x10-1
8x10-1
Power supply
single/3-phase
3-phase
3-phase
3-phase
Rated Power（KW）
1.1
1.5
2.2
3
Inlet Flange
KF25 or KF40
KF40
KF40
KF40
Exhaust Flange
KF25 or KF40
KF40
KF40
KF40
Oil Capacity (L)
min 1.2-max 2
min 3-max 4.5
min 3-max 4.5
min 3-max 4.5

Moter Speed(RPM)
50Hz
1440
1440
1440
1440
60Hz
1720
1720
1720
1720
Operation Temp(℃)

5-40
5-40
5-40
5-40
Noise Level(dB)

≤60
≤62
≤62
≤65
Weight（kg）

38
60
65
70
Q1. Can I have a sample order ? A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order. Q2. What about the lead time? A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than. Q3. Do you have any MOQ limit ? A: MOQ $5000.00 each order, if order less than $5000.00. we request $250.00 for extra charge. Q4. How to proceed an order ? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. Is it OK to use my logo on product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. Q6: Do you offer guarantee for the products? A: Yes, we offer 1years warranty to our products.
