Home /Products/Rotary Vane Vacuum Pump/Mining Industry Belt Driven Heavy Duty Solid Handling Self Priming Waste Water Pump With ABB Electric Motor

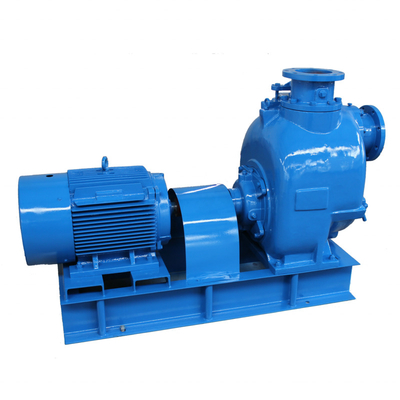

Mining Industry Belt Driven Heavy Duty Solid Handling Self Priming Waste Water Pump With ABB Electric Motor

1.0 Sets
MOQ
$200.00(>=1 Sets)
Price
Mining Industry Belt Driven Heavy Duty Solid Handling Self Priming Waste Water Pump With ABB Electric Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: T
Application: Mining Industry, Wastewater Transport And Flood Control, Sewage
Horsepower: 1~300HP
Power Source: Electric, Hydraulic
Pressure: 0.6MPA, Low Pressure
Structure: Single-stage Pump
Cable Length: NA
Outlet Size: 30
Voltage: NA
Power: NA, Electric Or Diesel
Usage: Water
Fuel: Diesel
Standard Or Nonstandard: Standard
Theory: Centrifugal Pump
Basic Infomation
Model Number: T
Payment & Shipping Terms
Packaging Details: Plywood case
Supply Ability: 200 Set/Sets per Month
Product Description
Products Description

T(also called P) Series Gorman-rupp Self-priming Trash Pump for Sewage Water Treatment

T series self-priming trash pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
The trash pump is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service
design have made T Series pumps the standard in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it's a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to re-priming automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.

Main Character
1. beautiful shape and fine structure, reliable performance
2. with strong capacity of self priming, no need to equip with flap valve
3. non-clog , and with powerful capacity of passing big solid
4. The unique lubrication oil mechanical seal cavity makes the performance more reliable
5. The hole can make sure that stronger sewage can be cleaned quickly when pump is jammed.
6. When operate, the pump can self-priming with gas and liquid at the same time.
7. Low rotary speed, reliable operation, long useful life, easily maintenance.
8. Very competitive price, high quality, small MOQ, fast delivery, OEM required, exporting plywood case.
Product Paramenters
Inlet/Outlet
2”(50mm), 3"(80mm), 4"(100mm), 6"(150mm), 8"(200mm), 10"(250mm), 12"(300mm)
Impeller Diameter
158.74mm-457.2mm
Rotary Speed
550RPM-2150 RPM
Flow Rates
8m3/h-1275m3/h
20GPM-5500GPM
Head
6m-63m
Horsepower
1HP-125HP
N. W
92KG-998KG
G. W
114KG-1066KG
Solid Passing
20.63mm-76.2mm
Material
cast iron, ductile iron, stainless steel, cast steel, aluminum, bronze
Diesel Driving
Water cooled or air cooled
Method of Connection
Self-priming pumps are available as basic units or may be flex-coupled, V-belt drivenor engine mounted.
Drive Variation
Cummins, Deutz, Ricardo, or Chinese Diesel, Electric Motor
Skid Mounted on Trailer
2 wheels or 4 wheels Trailer/Trailor
Package
Exporting plywood case
Product Advantages
Solids Handling Impeller
Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump
Exclusive Abrasion-Resistant Seal
Exclusive double-floating, self-aligning oil lubricated mechanical cartridge seal with stationary and rotating face of silicon
carbide is specifically designed for abrasive industrial wastewater service.
Removable Cover Plate
Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through cover plate opening for inspection or service.
Replaceable Wearplate
T Series pumps feature replaceable wearplates which fasten to the cover plate and can easily be removed for inspection or service. No expensive castings to replace.
Removable Rotating Assembly
Removal of rotating assembly allows easy inspection of pump shaft or bearings without disturbing pump casing or piping. On most
models, simply remove four bolts from the back of the pump and the rotating assembly slides out.
Our Company

Shanghai Suoto Pump Industrial Co., Ltd. is a professional pump manufacturer integrating R&D, manufacturing, sales and service as a whole, which has been certified by ISO9001 international quality management system.

Located in Langxia Industrial Park, Shanghai, Suoto Pump Industrial possesses two manufacturing bases in Shanghai and Zhejiang. Since our inception, Suoto Pump Industrial has been committed to the innovation and development of various pumps. Our leading products include self-priming trash pump, centrifugal pump, submersible pump, diaphragm pump, vacuum pump, diesel pump, fire pump, etc.

FAQ
Q: Can I chat with you online? What is your company official website?
A: Yes. Our ID is Skype/WhatsApp/Wechat: 0086 15317099112 or Alibaba trade messenger. Our company official website is www.suotopump.com.

Q: What type of company SUOTO is?
A: SUOTO is a manufacture and trading company, has factories in Shanghai and Zhejiang, with export and import license.

Q: What kinds of pumps do you supply?
A: Our products including self-priming trash pump, centrifugal pump, diaphragm pump, submersible pump, chemical pump, oil pump, diesel pump, fire fighting pump, etc.

Q: What is your payment terms?
A: Alibaba Trade Assurance, Western Union, Paypal, T/T, L/C, etc.

Q: Can you provide OEM, ODM service?
A: Yes. We have factories in Shanghai and Zhejiang, we can make products according to your requirements.

Q: Why should we buy from you?
A: We are committed to provide best quality products at minimum delivery time and competitive price. We believe this is what customer wants. We are satified until customers are.

Q: What is your warranty period?
A: We provide one year of unconditional warranty on our products for the manufacturing defects.

Q: What about delivery time?
A: Normally our production time is within two weeks. Please confirm before order.
