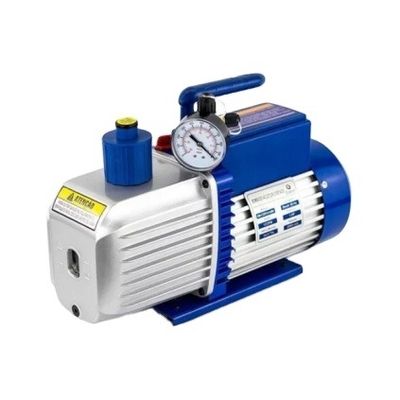

5CFM 142L/min AC Dual Stage Rotary Vane Vacuum Pump For Refrigeration And Air Conditioning Manufacturer VP245 1/2HP

1.0 Pieces
MOQ
5CFM 142L/min AC Dual Stage Rotary Vane Vacuum Pump For Refrigeration And Air Conditioning Manufacturer VP245 1/2HP
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Customized Support: OEM
Model Number: VP245
Application: Other, Automotive Industry, HVAC OEM, Machining
Horsepower: 1/2HP
Power Source: Electric
Pressure: 5CFM
Structure: Vacuum Pump
Cable Length: 150CM
Outlet Size: 180w
Voltage: 110V-220V
Power: 50HZ-60HZ
Product Name: DUAL STAGE VACUUM PUMP
Motor: 100% Copper Wire
Color: Customer Required
Ultimate Vacuum: 15 Microns
Inlet Port: 1/4'' & 3/8'' Flare
Flow Rate: 142 L/min
Function: Air Conditioner Fix
Certification: ETL, Ce, ISO9001
Basic Infomation
Certification: ETL, ce, ISO9001
Model Number: VP245
Payment & Shipping Terms
Packaging Details: One box including one piece of vacuum pimp, one manual, one bottle of oil we can pack according to customers' needs, pallets or box
Supply Ability: 700 Piece/Pieces per Day
Product Description
Product Description
MODEL
VP245
Flow Rate
50hz
4.5cfm
128L/min
60hz
5cfm
142L/min
Ultimate Vacuum
0.03Pa
15 microns
Power
1/2HP
Detailed Images
Exloded Drawing
Main features:
The front and back stage connected by one same shaft, higher vacuum degree.
PM material for back stage pump, higher wear resistance.
Superiority design on oil entering system, oil and gas separated thoroughly, no oil mist.
Video to show copper wire making process
Why choose us
Vacuum Pump Accessories
AC Power Supply Plugs
Item
Description
Item
Description
Item
Description
5011
China Plug
5041
American Plug
5071
Europe Plug
5021
China Plug
5051
Australia Plug
5081
Japan Plug
5031
Britain Plug
5061
South Africa Plug
5091
Italy Plug
Intake Ports Adapters
Item
Destription
Item
Destription
1704
1/4'' SEA Vacuum Guage
1706
1/4'' SAE
1707
1/4'' SAE 3/8''SAE
1708
1/4'' Tube(Locked with M12 ×1 nut)
1711
1/4'' SAE 1/2'' ACME
1714
1/4'' Tube
Selective Accessories
Item
Destription
Item
Destription
1751
Solenoid Valve
1761
Vacuum Gauge (68mm)
1752
Solenoid Valve
1765
Vacuum Gauge (80mm)
1753
Back-off Valve
Feedback from Customers
Our vacuum pump use in actual situation
Company Profile
FAQ
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Just kind remind, the express charge is higher than samples. So pls consider before you order. We could reduce the sample cost from your real order if you purchase big quantity next time.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q4. Is it OK to use my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1years warranty to our products.
Q6.Are you a factory?
A: YES. We are a factory speciiazed in manufacturing vacuum pump recovery machine and some flaring tools and other things for about 15 years.
Q7: May I visit your factory?
A: Sure, warmly welcome.address:1st Rd, Chengxi Industrial zone ,Wenling,Zhejiang,China,317500
