Home /Products/Gasoline Powered Generator/High End Technology Manufacturing 5kw Small Three Phase Gasoline Generators SE4500iE- JP-1

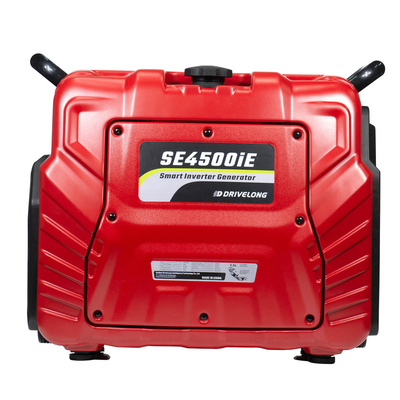

High End Technology Manufacturing 5kw Small Three Phase Gasoline Generators SE4500iE- JP-1

200.0 cartons
MOQ
High End Technology Manufacturing 5kw Small Three Phase Gasoline Generators SE4500iE- JP-1
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 2 Years
Certification: CE,GS,EPA,CARB,ROHS,EURO V
Model Number: SE4500iE- JP-1
Rated Voltage: 100/110/120/220/230/240V
Frequency: 60/50Hz
Starting System: Recoil Start+Electric Start
Type: 4-stroke Gasoline OHV
Cooling System: Forced Air
Cylinder Arrangement: Inclined, Single Cylinder
Displacement: 79cm3
Bore*Stroke: 48.6mm*43.0mm (1.91 In*1.69 In)
Fuel: Unleaded Gasoline
Ignition System: CDI
Starting System: Recoil/Electric Starter
Rated Current: 8A
Basic Infomation
Certification: CE,GS,EPA,CARB,ROHS,EURO V
Model Number: SE4500iE- JP-1
Payment & Shipping Terms
Packaging Details: Package: inside Polybag+EPE foam, outside Carton.
Product Description
Products Description
ENGINE
Type
4-stroke gasoline OHV
Cooling System
Forced air
Cylinder Arrangement
Inclined, single cylinder
Displacement
79cm3
Bore×Stroke
48.6mm×43.0mm (1.91 in×1.69 in)

Operation Hours
3.5Hr@rated load
8Hr@1/4 rated load
Fuel
Unleaded gasoline
Fuel Tank Capacity
4.2L (1.11 US gal)
Engine Oil Capacity
0.35L (0.37 US qt)
Ignition System
CDI
Starting System
Recoil starter
Noise Power Level(LWA)
@ From 4m by CE standards
92dBA
GENERATOR





AC Output
Output Waveform
Pure-Sine Wave, THD <3%
Rated Voltage
100/110/120220/230/240V
Rated Frequency
60/50Hz
Rated Output
1.8kVA
Maximum Output
2.1kVA
Safety Device Type
Electronic



DC Output
Rated Voltage
12V
Rated Current
8A
USB
5V/2A/1A
Safety Device Type
DC Protector
DIMENSIONS AND WEIGHT
Overall Length
530mm (20.9 in)
Overall Width
320mm (12.6 in)
Overall Height
430mm (16.9 in)
Dry Weight
24kg/26kg (53 lbs/57 lbs)

NOTE

The generator output specifications are based on the standard environment as follows:
* Altitude: 0m
* Ambient temperature: 25℃
* Relative humidity: 30%
Product packaging
FAQ
How to order a sample ? Samples Charge : Pay in advance, this amount will return back the cost after place mass order in future Procedure of bulk order 1,After you confirm the model and price,we will issue the Proforma Invoice for your final confirmation 2,We will arrange the mass production once get your deposit after confirmed with PI. 3,''Artworks'' Confirmation after get your order. 4,Goods Ready for Inspection and Shipment. Warranty policy 1- 2 years warranty policy. 2- Free spare parts replace the defective or broken parts when you place new order. What's your payment term? A: TT payment term ： 30% deposit and 70% balance before shipment B:LC payment term : 100% irrevocable LC. Do you offer OEM service? 1, we provide OEM service 2, Provide OEM design , logo ,sticker and package
