Home /Products/Gasoline Powered Generator/RISE G Generator Set And 2.5kW 220A Electric Start High Quality Welding Gasoline Non Welding Generator 25L / 10 Hours

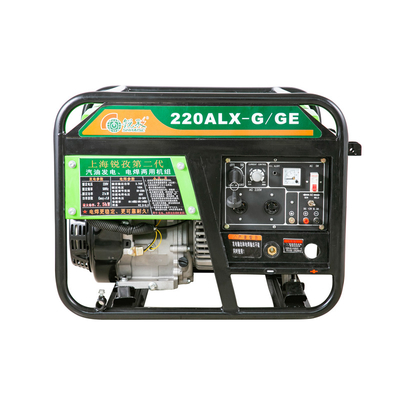

RISE G Generator Set And 2.5kW 220A Electric Start High Quality Welding Gasoline Non Welding Generator 25L / 10 Hours

10 pieces
MOQ
RISE G Generator Set And 2.5kW 220A Electric Start High Quality Welding Gasoline Non Welding Generator 25L / 10 Hours
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year, 1year
Certification: CE ISO9001
Model Number: RZ2200ALX-G
Rated Voltage: 220V(single Phase)
Rated Current: 50-220A
Speed: 3000RPM
Frequency: 50Hz/60Hz
Weight: 101kg
Product Name: Gasoline Welding Generator
Type: Open Genset
Engine: Chinese Engine
Rated Power: 2.5kW
Color: Green
Current Regulation Range: 50-220A
Load Rate: 15% ( 5 Electrode) 50% ( 4 Electrode)
No-load Welding Voltage: DC65V
Tank Capacity/working Hours: 25L/ 10 Hours
Basic Infomation
Certification: CE ISO9001
Model Number: RZ2200ALX-G
Payment & Shipping Terms
Packaging Details: CARTON BOX
Product Description
MODEL
160ALX-GE
220ALX-GE
220ALX-GH
RZ300ALX-GE
Rated Duty Cycle
60%
60%
60%
60%
OCV(V)
DC 80V
DC 65V
DC 80V
DC 50V
Current range(A)
DC 20-160A
DC 50-220A
DC 50-220A
DC 100-300A
Welding voltage(V)
DC 20-27V
DC 23-30V
DC 23-30V
DC 25-33V
Welding rod
2.0-3.2mm
2.5-5.0mm
2.5-5.0mm
2.5-6.0mm
Auxiliary rated power output
AC 3kW/120V or 230V
AC 2.5kW/120V or 230V
AC 5.0kW/120V or 230V
AC 3.0kW/120V or 230V
Engine Model
RZ170FE/50Hz
RZ190FE/50Hz
RZ190FE/50Hz
RZ2V80FE/50Hz
Max.power/Speed(RPM)
7HP/3600rpm
16HP/3600rpm
16HP/3600rpm
22HP/3600rpm
Displacement(cc)
Gasoline，208cc
Gasoline，420cc
Gasoline，420cc
Gasoline，678cc
Start method
Recoil/Electric
Recoil/Electric
Recoil/Electric
Electric
Fuel Tank capacity(L)
25
25
25
15
Running time(Hour)
8.5
10
10
4
Protection class
IP23
IP23
IP23
IP23
Dimension(mm)
125x450x555
775X540X600
915x540x720
1035X680X875
Net weight(kg)
58
101
95
212
