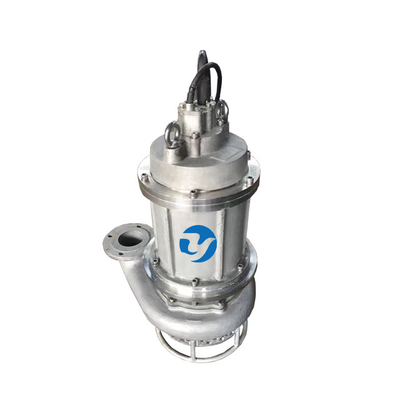

China Mining Industry Hydraulic Dredger Sewage Slurry Mining Electric Mud Dredging Pump Electric Submersible Pump

1 Set
MOQ
China Mining Industry Hydraulic Dredger Sewage Slurry Mining Electric Mud Dredging Pump Electric Submersible Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Customized Support: OEM, ODM
Model Number: ZJQ
Application: Mining Industry, Dredging, Sand Suction, Mud, Slurry, River Dredging, Sand Pumping, Power Plants, Mining, Sewage Treatment
Horsepower: 4-428
Power Source: Electric
Pressure: Low
Structure: Single-stage Pump
Cable Length: 10m
Outlet Size: 2-16 Inch
Voltage: 380/415 Or Others
Power: 3-315kw
Pump Flow Capacity: 50-1250m3/h
Pump Power: 11-132kw
Outlet Diameter: 4-10 Inch
Max. Discharge Distance: 1100m
Max. Passing Gravel Diameter: 56mm
Pump Work Type: Vertical
Motor Insulation Grade: F
Cable: Single And Double Lines Are Optional
Certification: SONCAP
Basic Infomation
Certification: SONCAP
Model Number: ZJQ
Payment & Shipping Terms
Packaging Details: wooden package or according to customers' requirements
Supply Ability: 125 Set/Sets per Month submersible dredge pump
Product Description
Product Overview

China Sand Dredging Mining Slurry Submersible Pump Hydraulic Dredge Sewage Electric Submersible Slurry Pump

Submersible sand dredging pump is the powerful suction flood-proof centrifugal pump which is submerged and operated in the harshest conditions to handle highly corrosive and abrasive slurry. Slurry pumping is one of the most challenging applications.OCEAN Pump brand robust submersible sand dredging pump is made of the high quality wear resistant components to withstand abrasion and shock, it is engineered with all high chrome wet ends, pressurized sealing technology and run dry capability for the most demanding applications.

The optimized high chrome steel impeller can ensure the best performance and operations in the best efficiency range. DMZ series submersible sand dredging pump has the characteristics of high efficiency, high performance, excellent reliability, lower operating and maintenance cost and longer service life, it can handle concentration of solids up to 60 percent. DMZ series submersible sand dredging pumps are suitable for complex heavy-duty applications to extract and handle slurry, sludge and sediments, etc.
FEATURES AT A GLANCE
1.All water contact parts are all constructed with abrasion resistant materials – chromium alloy; so pumps have better stability & longer service life. 2.Unique mechanical seal device can prevent the electric motor from high pressure water and impurities; thus high suction efficiency can be ensured. 3.Except the main impeller, two or three of extra agitators can be equipped to the main pump body to help break and mix the sludge, greatly improve the work efficiency 4.Easy installation, operation and cost saving, no need additional vacuum pump or pump house.
Front Picture
Side Picture
Side Picture
PRODUCT SPECIFICATIONS
NO.
Pump Type
DISCH.
DIA
CAP
Head
Power
Rotation speed
Eff.
Biggest particles discontinuous pass through
(mm)
(m³/h)
(m)
(kw)
(r/min)
(%)
(mm)
1
ZJQA50-21-11
100
35
22
11
1460
48
21
50
21
60
20
2
ZJQA50-26-11
80
35
29
11
1460
48
13
50
26
60
24
3
ZJQA100-18-11
100
70
20
11
1460
55
21
100
18
120
15
4
ZJQA25-40-15
80
18
41
15
1460
35
13
25
40
30
39
5
ZJQA50-35-15
100
35
38
15
1460
47
13
50
35
60
32
6
ZJQA60-30-15
100
42
33
15
1460
50
13
60
30
72
27
7
ZJQA75-25-15
100
52
28
15
1460
51
13
75
25
90
22
8
ZJQA150-15-15
150
105
17
15
1460
56
21
150
15
180
13
9
ZJQA75-35-22
100
52
38
22
980
48
13
75
35
90
32
Successful case
Submersible sand dredging pump is designed and engineered for complex heavy-duty pumping applications to handle high mixture densities such as sand, slurry, sludge, waste water and gravels, etc. The 6 inch submersible sand dredging pump which is specially designed by OCEAN Pump is correspond with foreign diving pumping pump parameters. The 6 inch submersible sand dredging pump has four pump types such as ZJQ150-15-15, ZJQ150-22-22, ZJQ150-30- 30 and ZJQ300-20-37, etc. The applicable range of 6 inch submersible pump flow is roughly 100-300 cubic meters, and the head is 15-30 meters.
SIMILAR PRODUCTS
Jet Suction Dredger
Submersible Dredge Pump Dredger
Cutter Suction Dredger
Packing & Delivery
Our Company
OCEAN Pump had been specialized in designing, manufacturing, and supplying sand pumps, slurry pumps, gravel pumps, and dredger equipment for more than 20 years. With an innovative hydraulic and structural design, our main sand pumping over-flow parts are made of the wear-resistant high chrome alloy, the sand pump will have a long working life, reliable operation, and small vibration, low noise, and easy maintenance. We had provided effective sand pumping equipment and dredging equipment to over 60 countries. Our products are widely used for river sand pumping, mining pumping, pond dredging, reservoir dredging, tailing transportation and land reclamation, etc. Our customers are from Southeast Asia like Malaysia and Singapore, Central Asia like Kazakhstan, South America like Brazil, Africa like Nigeria, Cameroon, and Côte d’Ivoire.
