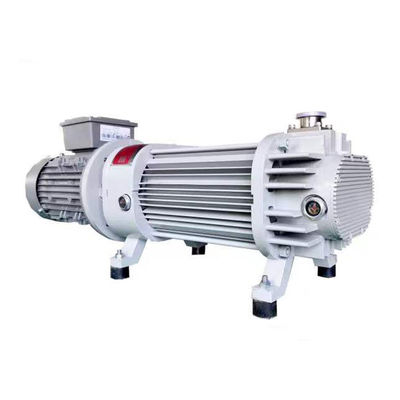

Food and Beverage Industry 18 Cubic Meter /hr Vacuum Air Motor Oil Switch Liquid Extractor Food Grade Vacuum Pump Large

1.0 set
MOQ
Food and Beverage Industry 18 Cubic Meter /hr Vacuum Air Motor Oil Switch Liquid Extractor Food Grade Vacuum Pump Large
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR
Customized Support: OEM, ODM
Model Number: WIN 18
Application: Food And Beverage Industry, Industrial Boilers, Machining, Marine, Metal And Equipment Manufacturers, Mining Industry, Pharmaceutical Industry, Chemical, Pharmaceutical, Research, Etc.
Horsepower: 18 M³/hr
Power Source: Electric
Pressure: High Pressure
Structure: SCREW PUMP, Vacuum Pump
Product Name: Air Cooled Dry Screw Vacuum Pump
Type: Dry Air Pump
Materials: Aluminum Alloy
Seal Method: Double End Mechanical Seal
Working Temp: -20~45℃
Product Usage: Gas Recovery, Vacuum Drying, Solvent Recovery Etc.
Inlet & Outlet Hole: KF25 & KF25
Motor Power: 1.5KW
Basic Infomation
Model Number: WIN 18
Payment & Shipping Terms
Supply Ability: 100 Set/Sets per Month
Product Description
Model
Unit
WIN 018
WIN 048
WIN 080
Pumping rate
m³/hr
18
48
80
Ultimate vacuum
Pa
1~200
1~200
1~200
Stowage motor
KW
1.1
1.5
2.2
Rotating speed
rpm
2800
2800
2840
Air inlet

KF25
KF40
KF40
Exhaust vent

KF25
KF25
KF40
Cool down
Air-cooled



Lubricati
Anti-wear hydraulic oil, Synthetic gear oil or fluorinated oil



Seal type:Intake end
Magnetic seal



Seal type:Exhaust end
Magnetic seal, Magnetic seal+PTFE shaft seal



Noise
dB
72
75
75
Weight(Without motor)
kg
27
39
44

Shandong Newels’ WIN series dry compound screw vacuum pump integrates the benefits of international advanced vacuum pumps’ technique.
We design and develop it by the technology of the 5th variable pitch screw(energy saving 30%, lower exhaust temperature).
This screw vacuum pump is new environmental-friendly type,it also represents the characteristics of efficiency, energy- saving, convenient operating, and reliable performance.
This stands for the future trends of vacuum pump industry.

The dry compound screw vacuum pump is a sealed space consists by two parallel screw rotors and the pump body. A certain rotation gap is maintained between the rotor and the pump body without friction. Driven by the reverse synchronous gear, the air will be compressed from the air inlet to outlet. Because there is no friction between the rotor and the pump body, the pump cavity is kept clean without lubricating oil.
This screw vacuum pump has significant advantages: single stage pump without intermediate partition, short gas passage, high efficiency,not easy to get blocked，and easy to clean.

Pharmaceutical preparation,chemical technology, solvent recycle, medical equipment, biological products,oil and gas recycle, film preparation, laboratory experiment, biochemical testing and analysis, semiconductor, microelectronics, solar energy, material processing and other related field.

①Using advanced fifth-generation compoundvariable pitch screw technology.
②Environmental protection-no oil, no water, no pollution, clean vacuum can be obtained, and the pumped materials can be recycled.
③Energy saving, using variable pitch energy saving technology can reduce energy consumption by 30%.
④Chemical corrosion resistance, with anti-corrosion protective layer.
⑤Air-cooledstructure is adopted, which is more convenient and simple to use.
⑥It saves manpower with low maintenance requirement.
⑦High ultimate vacuum degree, ≤3Pa.
⑧More reliable seal structure is made by the most advanced magnetic sealing device, to optimize the vacuum pump performance.
⑨Convenient to use with light weight, it is designed with light-weight materials.
⑩Low noise, using high-precision machining parts to reduce the noise.
