Home /Products/Refrigeration Vacuum Pump/Automotive Industry RVP-90 53CFM High Pressure Air Oil 2 Stage Electric Vane Rotary Vacuum Pump 220V/380V

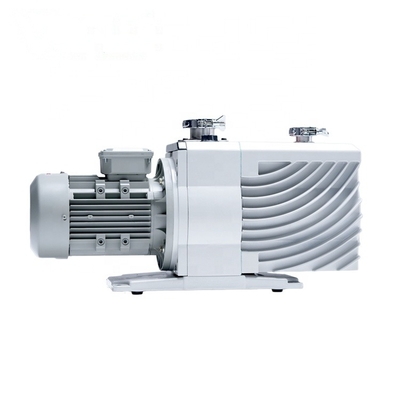

Automotive Industry RVP-90 53CFM High Pressure Air Oil 2 Stage Electric Vane Rotary Vacuum Pump 220V/380V

1 Piece
MOQ
$3,000.00(1 - 2 Pieces) $2,600.00(>=3 Pieces)
Price
Automotive Industry RVP-90 53CFM High Pressure Air Oil 2 Stage Electric Vane Rotary Vacuum Pump 220V/380V
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: RVP-90
Application: Automotive Industry, Biofuel Industry, District Energy, Food And Beverage Industry, Industrial Boilers, Irrigation And Agriculture, Metal And Equipment Manufacturers, Temperature Control, Obtain Vacuum
Horsepower: 3HP 2.2kw
Power Source: Electric
Pressure: 4*10-2pa
Structure: 2 Stage Pump
Cable Length: Standard
Outlet Size: KF40
Voltage: 220V/380V
Power: 3HP 2.2kw
Product Name: 2 Stage Rotary Vane Vacuum Pump
Pump Speed: 25L/S 53CFM
Rotational Speed: 1450/1750 Rpm
Inlet Port: KF40
Phase: 3-PH
Drive: Direct Drive
Usage: Air Vacuum Pump
Medium: Vacuum
Fuel: Pump Oil
Certification: CB
Basic Infomation
Certification: CB
Model Number: RVP-90
Payment & Shipping Terms
Packaging Details: Inner: plastic bag Outer: Carton or wooden case
Supply Ability: 200 Piece/Pieces per Month
Product Description
Brief Introduction
RVP series is high speed oil sealed 2 stage rotary vane vacuum pump. It is a new concept out of conventional design to satisfy customer's needs. It consists of pump housing, oil casing, motor housing, pump base and pump module. It occupies oil anti-suckback-valve and gas ballast for protecting pump and vacuum system. RVP series pump is highly efficient in various ranges, low noise, easy to use and maintain, to protect pump and environment.
1. Improved anti-suckback to protect the vacuum system in the event of sudden stop.
2. Convenient gas ballast valve control.
3. Occupying international standard clamp and flange at inlet and outlet port.
4. Convenient oil level checking and changing.
5. Occupying strong and constant pressure oil circulating system to protect the pump.
6. Low noise and vibration. Simplifide repairs and maintenance.
7. Three grounding sockets and thickened wires to safer to operate.
RVP high speed oil sealed direct-drive 2 stage rotary vane vacuum pumps are used for medicine technology, analytical instruments, research and laboratory, semiconductors, refrigeration, glove boxes, leak detection, lamps and tube manufacture, vacuum freeze drying, vacuum metallurgy, vacuum degassing, vacuum oven, vacuum furnace, vacuum coating, back the turbo molecular/diffusion/roots pumps, and so on.
Product Description
RVP-90 oil  2 stage rotary vane vacuum pump



Pump Speed
50HZ
L/S
25
50HZ
L/min
1500
60HZ
L/S
30
60HZ
L/min
1800


Ultimate pressure

Without gas ballase
Disperse
Pa
4*10-2
Whole
Pa
4*10-1

With gas ballase
Disperse
Pa
1.3
Whole
Pa
4
Permissible vapor pressire
Pa
3300
Motor power(3-Ph 220V/380V)/(1-Ph 220V)

Kw
2.2/-
Inlet Port

DN
KF40
Outlet Port

DN
KF40

Rotational speed of pump
50HZ
rmp
1450
60HZ
rmp
1750
Oil filling
L
6.5
Noise level (without gase ballaset)
dB(A)
56
Weight (3-Ph)
KG
88
Manufacture Center
Package
Recommend Products
KF vacuum fittings and flanges
KF stainless steel vacuum bellows
KF high vacuum manual angle valve
Ultra-high vacuum gate valve
KF stainless steel ball valve
Vacuum pump system
FAQ

Q: What product you can supply?

A: VACTEC supply vacuum fittings and flanges, vacuum valves, vacuum pumps, customized vacuum chambers, vacuum systems and so on.


Q: Can I get some samples?

A: Yes, sample order welcome.


Q: Could I use my own logo or design on goods?

A: Yes. Customized logo and design on production are available.


Q: May I visit your factory?

A: Sure. Welcome anytime. We can also pick you up at airport and station.


Q: Do you have any inventory?

A: Yes. We usually have small inventory of standard products in our warehouse.
