Home /Products/Industrial Vacuum Pumps/Voltage Insulation Class F Automotive Industry Standard Stainless Steel Industrial Centrifugal Pumps

Voltage Insulation Class F Automotive Industry Standard Stainless Steel Industrial Centrifugal Pumps

20.0 Pieces
MOQ
Voltage Insulation Class F Automotive Industry Standard Stainless Steel Industrial Centrifugal Pumps
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 24MOUTH
Customized Support: OEM
Model Number: MB
Application: Automotive Industry, Irrigation And Agriculture, Washing And Cleaning
Power Source: Electric
Pressure: High Pressure
Structure: Multistage Pump
Voltage: 220-240v
Power: 0.37 - 1.85kw
R.flow (m3/h): 4.2 -12
R.head (m): 16 - 31
Power (W): 0.37 - 1.85kw
Power(HP): 0.5 - 2.5
In/Out (mm): 32x25
Basic Infomation
Model Number: MB
Payment & Shipping Terms
Packaging Details: Packing: Export specifications Carton/Wooden box
Supply Ability: 100000 Piece/Pieces per Month
Product Description

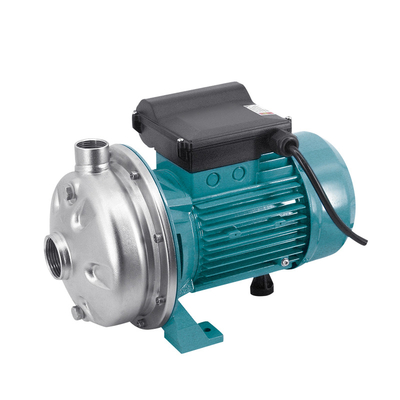

MB Stainless Steel Centrifugal Pump INSTALLATIONS AND USE For pumping clean liquids without abrasive particles, which are chemically non aggressive to the pump materials. The pumps can be used for air-condition or cooling system, industrial washing, pure water or drinking water bottling, and domestic water supply. All the components in touch with the pumps liquid are constructed from stainless steel AISI 304, thus guaranteeing complete hygiene and maximum resistance against corrosion. The pump should be installed in an enclosed environment or sheltered from inclement weather. PERFORMANCE RANGE Flow rate up to 18m3/h Head up to 40m OPERATING CONDITIONS Liquid temperature up to +104ºC Ambient temperature up to +40ºC Max.Working pressure 10bar Continuous duty ELECTRIC MOTOR Two-pole induction motor,50Hz(n=2850rpm) Standard voltage 1x 220V-240V, 3x 380V-415V With thermal protector incorporated into the winding Insulation class F Protection IP44 OPTIONS AVAILABLE ON REQUEST Special mechanical seal Other voltages or 60Hz frequency Higher or lower liquid temperatures
Q1. Can I buy one as sample? How long?
A:Yes, of course, we supply samples. We need 10 days to prepare the samples.

Q2. How can I get the quotation?
A:Leave us message with your purchase requirements and we will reply you within one hour in
working time. And you may contact us directly by Whatsapp +86-18658658687.

Q3. Is OEM acceptable?
A:Yes, we accept OEM.

Q4. What’s the warranty?
A:We give 18 months warranty for wassermann standard pumps, from the date the container arrives
The destination port .

Q5. How can i claim the warranty if any faulty pumps?
A:We give 0.5% invoice amount of the free spare parts in each shipment.
The faulty pumps with coil burnt, we will send you new pumps to replace, they are for free.
You can ask for free spare parts to repair the faulty pumps.

Q6. What’s the payment term?
A:30% before the production, the rest paid against the BL copy OR LC at sight. OA is not acceptable.

Q7. How long can you finish the production?
A:20-30 days depends on different pumps.

Q8. Where is your factory? Can i visit you?
A:Yes, sure, welcome! We are in Wenling city, Taizhou, Zhejiang


More information please send inquiry to us, we will provide the timely feedback!
