Features

Specifications

Warranty: 3 Years, 12 Months

Customized Support: OEM, ODM, OBM

Model Number: 2BV

Application: Other, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Food And Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Machining, Metal And Equipment Manufacturers, Mining

Horsepower: 1~20hp

Power Source: Electric

Pressure: -0.097Mpa

Structure: Multistage Pump

Outlet Size: 25~80mm

Voltage: 110-480v, 380V/440V

Power: 0.81~15kw, Electric

Usage: Air Pump

Product Name: 2BV Series 3kw Liquid Ring Vacuum Electric Pump Vacum Pumps

Feature: High Efficiency

Max Gas Volume: 500m3/h

Certificate: ISO CE

Sealing: Mechanical Seal

Certification: Ce

Basic Infomation

Certification: ISO CE, ce

Model Number: 2BV

Payment & Shipping Terms

Packaging Details: Suit for sea transportation/Wooden boxes

Supply Ability: 2000 Piece/Pieces per Month Over 20 years experience

Product Description

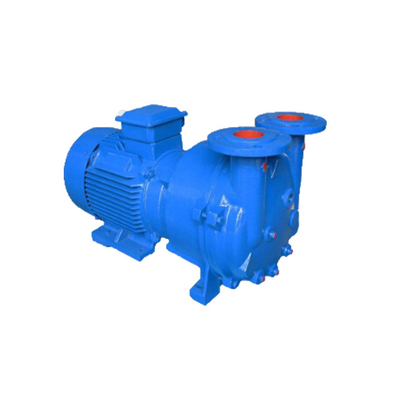

China Sinyane pump 2BV Series 3kw Liquid ring vacuum electric pump vacum pumps

2BV series vacuum pump has small volume, compact structure, directly connected motor, while installation, put it in horizontal plane, no need chassis.
2BV series vacuum pump works basing on water ring principle, that is, impeller is installed eccentrically inside of pump body, after the pump start up, working liquid forms liquid ring(which is concentric with pump body ) inside of pump body, impeller passes motor power to liquid ring. Liquid ring pulse periodically between the impeller vanes, while in pulsation, gas is suctioned in through disk suction inlet and discharged from disk exhaust vent.INQUIRE NOW

Technical Parameter

Item	2BV Series Liquid ring Vacuum Pump
Suction	Single
Model	2BV series
Material	Stainless steel
Color	Blue and adjustable
Mode	Horizontal
Impeller	Open impeller
Seal	Mechanical seal
Speed	970~2880r/min
Theory	Vacuum pump
Structure	Single pump
Usage	irrigation, transfer water
Power	Electric
Standard or Non	Standard
Shaft	Stainless steel
Capacity	27-500m³/h
Power	1.1-15kw
Warranty	1year
Certificate	ISO9001:2008
OEM	Acceptable GET THE LATEST PRICE
Feature	Cheap, mature technology, widely used
