Home /Products/Water Transfer Pump/Family Houses DM MP-20RM NPT BSPT Thread Beverage Grade Stainless Steel Permanent Magnetic Brewing Rise Mag Beer Drive Pump

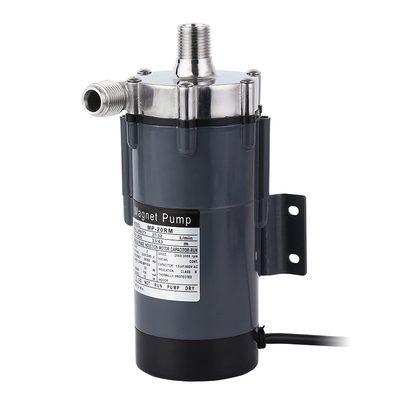

Family Houses DM MP-20RM NPT BSPT Thread Beverage Grade Stainless Steel Permanent Magnetic Brewing Rise Mag Beer Drive Pump

1 piece
MOQ
Family Houses DM MP-20RM NPT BSPT Thread Beverage Grade Stainless Steel Permanent Magnetic Brewing Rise Mag Beer Drive Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM, ODM
Model Number: Mp-20rm
Application: Family Homes, Food And Beverage Industry, Pharmaceutical Industry, Medical Equipment
Horsepower: 15 W
Power Source: Electric
Pressure: Other
Structure: Magnetic Pump
Cable Length: 0.75m
Outlet Size: NPT/BSPT Thread 1/2"
Voltage: 110/220V, 110V/220V
Power: 15W
Motor: 15W
Product Name: Magnetic Pump
Usage: Food And Beverage
Material: Stainless Steel, Food Grade High Temperature Resistance Polypropylene
Color: Gray
MOQ: 1PCS
Standard Capacity: 17/22 L/min
Motor Power: 15W
Advantage: Strong Power
Basic Infomation
Model Number: mp-20rm
Payment & Shipping Terms
Packaging Details: Corrugated Box+Foam Box
Supply Ability: 500 Piece/Pieces per Day
Product Description
Products Description
Model
Steel Beer Pump MP 20RM
Material
304 stainless steel + Food grade high temperature resistance polypropylene+ Ceramic+Ternary ethylenepropylene rubber(EDM)
Size
209 L*86 W*115 H
Interface
NPT BSPT Thread Out-inlet 1/2inch
Max. Head
3.1/4.3 m
Max. Capacity
27/32 L/min
Output
15 w
Work Temperature
0℃~140℃(32F~284F)
Applications
Use to dispense beer, treat water, transfer hot water from your kettle to a mash tun, or recirculate mash wort and sparge and transfer to a brew kettle
Features
1. This pump is full-sealed structure, avoids liquid leakage.
2. High working temperature, the maximum working temperature is 140℃
3. Allow long-time working.
4. This pump is not a self-priming pump, it cannot suction itself. When starting to run the pump, the pump head must be filled
with liquid, so that the impeller will work normally to transfer. Do not empty transport.

It is forbidden to run dry, running dry will cause the motor and impeller damaged.
Product Show
Model
-----------------------
Steel Pump
-----Beer-----
Tube interface(mm)
Spiral interface(inch)
Max.Capacity
Max.Head
Power
Voltage
Entrance
outlet
Entrance and exit
Live pipe
50/60Hz (L/min)
(m)
50/60Hz (w)
(v)
MP-10R(M)
14
14
G 1/2
G 1/2
11/12
1.5/2.1
6
110/220
MP-15R(M)
16
16
G 1/2
G 1/2
16/19
2.7/3.4
10
110/220

MP-20R(M)

18

18
G1/2
G1/2

27/32

3.1/4.3

15

110/220
G3/4
G3/4
MP-30R(M)
20
20
G 3/4
G 3/4
33/38
3.8/5.4
25
110/220
MP-40R(M)
20
20
G 3/4
G 3/4
45/52
4.6/6.5
65
110/220
MP-55R(M)
26
26
G 1
G 1
60/70
5.6/8.2
90
220/380
MP-70R(M)
26
26
G 1
G 1
86/97
6.7/9.7
150/180
220/380
MP-100R(M)
26
26
G 1
G 1
120/130
8.6/11.6
250/265
220/380
R represents tube interface type                                       RM represents thread interface type(BSP&NPT spiral)
Flange type available, Flange out diameter is 50.5mm normally
