Home /Products/Water Vacuum Pump/Electric Drip Irrigation 220V/380V 50Hz 3.5Hp Water Pump Agricultural Centrifugal Agricultural Pond Irrigation Pump

Electric Drip Irrigation 220V/380V 50Hz 3.5Hp Water Pump Agricultural Centrifugal Agricultural Pond Irrigation Pump

1 piece
MOQ
$121.92(1 - 100 pieces) $118.24(101 - 200 pieces) $115.84(>=201 pieces)
Price
Electric Drip Irrigation 220V/380V 50Hz 3.5Hp Water Pump Agricultural Centrifugal Agricultural Pond Irrigation Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 YEAR, 1 Year
Customized Support: Other
Model Number: DSU-80
Application: Agricultural Drip Irrigation, Sprinkler Irrigation, Factory Enterprise Drainage
Horsepower: 3.5hp, 3.5hp
Power Source: Electric
Pressure: /
Structure: Centrifugal Pump
Cable Length: 1M
Voltage: 220V/380V, 220V/380V
Product Name: Electric Water Pump
Size: 58*29*43(cm)
Weight: 29kg
Frequency: 50hz
Rated Lift: 28
Rated Flow: 50
Rated Rotational Speed: 2900
Basic Infomation
Model Number: DSU-80
Payment & Shipping Terms
Product Description
Product Paramenters
Model
DSU-80
Warranty period
One year
Material
The outer frame is iron, the motor is copper, and the rest is aluminum
Size
58*29*43（cm）
Weight
29kg
Voltage
220V/380V
Frequency
50Hz
Horsepower
3.5Hp
Rated lift
28
Max lift
28
Rated flow
50
Rated speed
2900
Way of structure
Centrifugal
Wire length
1M
Application
Agricultural drip irrigation (mainly used in greenhouses), sprinkler irrigation, factory and enterprise drainage

Product Description

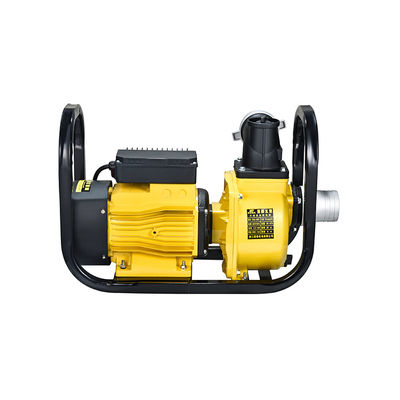

DSU series large flow electric pump is composed of high-quality aluminum casing motor, aluminum alloy pump casing and runner-type impeller volute. Unique frame design makes it protective and portable. This series has the advantages of light and beautiful appearance, large flow, high lift, fast self-priming speed and low energy consumption cost. At the same time, it overcomes the characteristics of submersible pumps that must be water-cooled and easily trapped in mud, and is especially suitable for greenhouse drip irrigation, sprinkler irrigation, industrial and mining enterprise drainage treatment, municipal engineering, factory water circulation, aquaculture water supply and drainage, water-cooled air-conditioning water supply and other occasions.
Technical Parameter
Item
DSU-50
DSU-80
DSU-100B
DSU-100A
Inlet/Outlet size
50
80
100
100
Displacement Q.max (m³/h)
25
50
75
90
Lift H.Max (m)
28
28
20
20
Suction (m)
8
8
7
8
Power (kW)
2.2
2.5
3
5.5
Speed (rpm)
2900
2900
2900
2900
Voltage (v)
220/380
220/380
220/380
380
Frequency (Hz)
50
50
50
50

Product Features

● Perfect water seal is durable: SB silicon carbide mechanical seal is adopted, which is 6-7 times more durable than ordinary seals. ● Thoughtful design: long screw assembly for easy maintenance. ● High-performance self-priming, the special structure ensures strong self-priming, excellent performance, lightweight and durable in design. ● The lead-iron cast impeller and thickened casing are more than 5 times higher than the general cast iron structure. ● The semi-frame structure is welded with 22# steel pipe with moderate thickness, and the grasping position is low and easy to lift.
Item
EWB-20
EWB-30
CHP-20(single impeller)
ZHP-20(double impeller)
Inlet/Outlet size
50
80
38/38/50
50
Displacement Q.max (m³/h)
30
45
30
25
Lift H.Max (m)
20
18
45
60
Suction (m)
8
7
5
6
Power (kW)
3
3
3
3
Speed (rpm)
2900
2900
2900
2900
Voltage (v)
220/380
220/380
220/380
220/380
Frequency (Hz)
50
50
50
50
Exclusive Service
Product Categories
Company Profile
Shipping&Payment
FAQ
Q1. What's your company's main products? A: Our company is specialized in many kinds of fish pond aerators，including Waterwheel aerator, Floating aerator, Surge aerator, Wave aerator, Double speed aerator, Paddle aerator and Agricultural water pump. Q2. What's the MOQ for your production? A: The MOQ depends on your products requirements. Q3. Can your product be customized? A: YES, the waterwheel aerator can be customized with material, pattern, logo, size, color and motor model, etc. Q4. Where is your loading port? A: Ningbo, or else port in China as your requirements. Q5. Are you a manufactuer or trading company? A: We are a manufactuer. located in Taizhou city, Zhejiang province,china.
