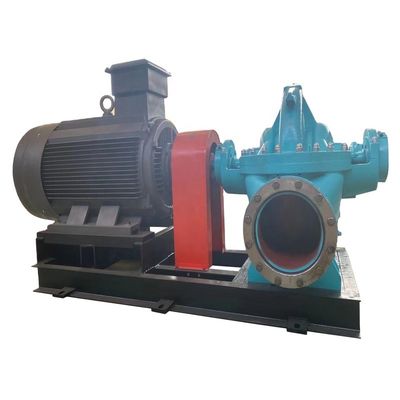

Automotive industry S series centrifugal double suction water pump case electric horizontal split circulation pump

1.0 Units
MOQ
Automotive industry S series centrifugal double suction water pump case electric horizontal split circulation pump
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 1 Year
Customized Support: OEM, ODM, OBM
Model Number: S Series
Application: Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking Water Treatment, Family Homes, Food And Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation And Agricultu
Horsepower: 25 Hp-3300 Hp
Power Source: Electric
Pressure: High Pressure Or Low Pressure, High Pressure
Structure: Single-stage Pump
Cable Length: According To Customer Requirements
Outlet Size: 6-18 Inch
Voltage: 380V/415V/660V/1140V
Power: 22kw-2240 Kw, Electric
Usage: WATER
Standard Or Nonstandard: Standard
Theory: Centrifugal Pump
Product Name: S Series Double Suction Horizontal Split-casing Circulation Pump
Type: Horizontal
Name: S Series Double Suction Horizontal Split-casing Circulation Pump
Basic Infomation
Model Number: S Series
Payment & Shipping Terms
Packaging Details: Wooden box packaging for S Series Double Suction Horizontal split-Casing circulation pump
Supply Ability: 2000 Unit/Units per Year S Series Double Suction Horizontal split-Casing circulation pump
Product Description
Specification
Inlet Diameter
150-1400mm
Capacity Q
108-27000m3/h
Head H
8.6-140m
Power P
18.5-2500KW
Motor
Brand optional,100% Copper Wire
Voltage
380V/415V/660V/1140V
Material
Cast Iron/SS316/SS304/Copper,Can be customized
Scope of supply
Pump,Motor,Coupling,Base,Pipe,Control cabinet,Flange,Wearing parts,Other Accessories
Certification
ISO 9001
Warranty
One Year/According to customer requirements
The SH type is a single stage double suction split case centrifugal pump, suitable for conveying clean water and non-corrosive (or weakly corrosive) liquids.The maximum temperature of the medium is 80 degrees. After the bearing bodies at both ends pass through the cooling water,hot water of not more than 130 degrees can be delivered. According to the customers’ special requirements,the material can be changed to meet other conditions of use.
Single stage irrigation double suction split case centrifugal water pump.Mainly used in water supply plants, air conditioning circulating water,heating network systems, building water supply, irrigation, drainage pumping stations, power plants, industrial water supply systems, fire protection systems, shipbuilding industry, mine water supply and drainage, etc.
The pumps mean that:For example 10SH-13A
10-------Pump’suction diameter is divides by 25(i.e.the suction diameter is 250mm)
SH--------Single stage double suction centrifugal pump
13 ------The specific speed is divides by 10(i.e.this pump specific speed is 130)
A --------Pump impeller is cutted for the first time
Single stage irrigation double suction split case centrifugal water pump.The main components of the pump are pump body, pump cover, impeller, shaft, double suction seal ring, shaft sleeve and bearing body.
1) The pump body and the pump cover are made of cast iron, which together form the working chamber of the impeller. There are pipe screw holes for the pressure gauge and vacuum gauge on the inlet and outlet flanges of the pump body. At the lowest point of the pipe diameter, there is a pipe screw hole for discharging water.
2) Double-side inflow impeller,its shape is symmetrical, and it is tested by static balance at the factory.
3) Bearing: The structure of this series of pumps adopts rolling bearing (caliber 150mm-500mm) and is lubricated with butter.
4) Shaft seal: The shaft seal of the pump is composed of packing chamber, packing ring, packing gland, packing sleeve, packing and shaft sleeve.
5) Pump with caliber ≥350, water filter is mounted at the end of the suction pipe.Before start up the pump,use a vacuum pump to draw the water. Therefore, two sets of exhaust pipes are installed in the upper part of the pump cover, and a small check valve is connected in series in the pipe. A small check valve is used to prevent high pressure water from flowing back into the low pressure zone during normal pump operation.
Model
Inlet(mm)
Capacity(m3/h)
Head(m)
Power(KW)
Speed(rpm)
150S
150
108-220
32-84
22-55
2950
200S
200
180-351
31-103
37-110
2950
250S
250
320-622
8.6-71
18.5-160
1450
300S
300
504-972
10-93
30-315
1450
350S
350
745-1260
10-140
55-630
1450
500S
500
1400-3240
10-114
130-800
970
600S
600
2330-3960
18-75
185-850
970
700S
700
2736-4800
43-100
630/1600
730/960
800S
800
4788-6800
24-89
625-2000
585/600/730/750
1000S
1000
6700-10000
17.5-52.5
630-1600
585
1200S
1200
5800-12960
18.5-60.5
710-2500
485/500/600/750
1400S
1400
13580-27000
14-25
800-2000
300/375
1 / Q: Are you a manufactory or trading company?
A: We are water pump manufactory with more than 30 years production experience.
2 / Q: What’s your MOQ?
A: Trial sample order is OK .
3 / Q: What’s your payment terms?
A: T/T , L/C , ......
4 / Q: What certificates do you have ?
A: CE , ISO 9001 , UL .....
5 / Q: How about the warranty ?
A: One year warranty for pumps .
6 / Q: What is the delivery time ?
A: 10-30 days according to customer quantities .
7 / Q: Can you do OEM brand ?
A: Yes, Welcome .
8 / Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the capacity and head ?The capacity and head range ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you.
If you have special requirement, such material, please inform us .
9 / Q: How to replace parts ?
A: In the order period, we will list our vulnerable parts and their quantities to our customer, and sold at competitive price, then ship together with pumps if customer needs.
