Name: Food and Beverage Industry Tobee 1.5/1 B-AH Wear Resistant Rubber Slurry Pump
Brand: Food and Beverage Industry Tobee 1.5/1 B-AH Wear Resistant Rubber Slurry Pump
SKU: 1.5/1 B-AH
Rating: 4.5 (129 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 3 Years

Customized Support: OEM, ODM, OBM, Software Reengineering

Model Number: 1.5/1 B-AH

Application: Food And Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation And Agriculture, Metal And Equipment Manufacturers, Mining Industry

Power Source: Electric

Pressure: Low Pressure

Structure: Single-stage Pump

Outlet Size: 1 Inch

Voltage: 380V/440V

Power: According To The Customer

Motor: Max.15kw

Material: R08, R26, R55, S02, S12, S21, S31, S42 Etc

Seal Arrangement: Packing Seal, Expeller Seal, Mechanical Seal

Key Words: 1.5/1 BAH Rubber Slurry Pump

Basic Infomation

Model Number: 1.5/1 B-AH

Payment & Shipping Terms

Packaging Details: Wooden Case

Supply Ability: 2000 Set/Sets per Month

Product Description

Product Name	1.5/1B-AHR Slurry Pump	Speed	1400-3400rpm
Brand	Tobee®	NPSHr	2-4m
Size	1.5'' x 1''	Eff.	35%
Capacity	10.8-25.2m3/h	Power	Max.15kW
Head	7-52m	Materials	High Chrome, Rubber, Polyurethane

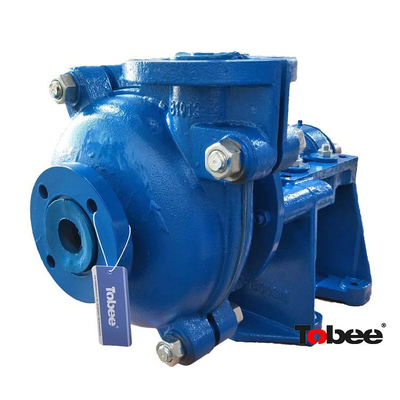

Tobee 1.5/1B-AHR Rubber Lined Slurry Pump is the standard heavy duty slurry pumps which designed with rubber lined. It is more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges. The rubber lined slurry pumps typically used in process plant transfers, corrosive and caustic wet waste, recycling-washing plants, minerals processing, mineral recovery and chemical process plant.

1.5 x 1 B-AH Rubber Slurry Pump Design Features

√ Cantilever, horizontal centrifugal rubber lined slurry pump
√ Wet end –resistance and corrosive resistance rubber lined wear parts
√ maximum working pressure is 3.6Mpa.
√ Expeller seal, mechanical seal and packing seal are available.
√ The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit
installations and applications.
√ To adapt to convey heavy abrasion, high concentration dredge, slurry pump's body is used double-shell construction, in other words, being made of inside lining and outside casing.

Products Exhibition

Detailed Images

Mining & Mineral Processing

The slow running speeds of the Tobee AH Heavy Duty Slurry Pump, together with the comprehensive choice of abrasion resistant
alloys and elastomers, provide unrivalled performance and service life for all abrasive mining and minerals processing
applications.

Industrial Applications

Wherever abrasive solids are causing premature failure of pumps, the Tobee AH Heavy Duty Slurry Pump range has the right
combination of performance, wear life and reliability to bring the customer the lowest cost of ownership.

Sand & Gravel

Designed for easy and simple strip down and re-assembly, the Tobee AH Heavy Duty Slurry Pump minimises downtime, making it the
ideal choice where installed stand by pumps are not available.

Shaft Seal Arrangement

Slurry Pumps Seal Arrangement

• Packing Seal is a general shaft seal for slurry pumps. It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve, For high abrasion conditions, The ceramic shaft sleeve is available. • Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Slurry pump expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series. • Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition, So it has high abrasion and vibration resistance, pump mechanical seal can be used in various severe conditions.

Recommend Products

Company Introduction

Hebei Tobee Pump Co.,Limited, is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc. Our factory is located in the High tech Development Zone, Shijiazhuang City, China. We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Sand pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.

Customer Evaluation

All the products manufactured by Tobee® Pump are well received by our customers and have gained high appraisal from the society noting certain qualities of our products like energy saving, overall efficiency, stable operation and long service life. Some of our customers refer to Tobee® Pumps simply as "Permanent Pumps" because of our quality and defect-free manufacturing ability.
