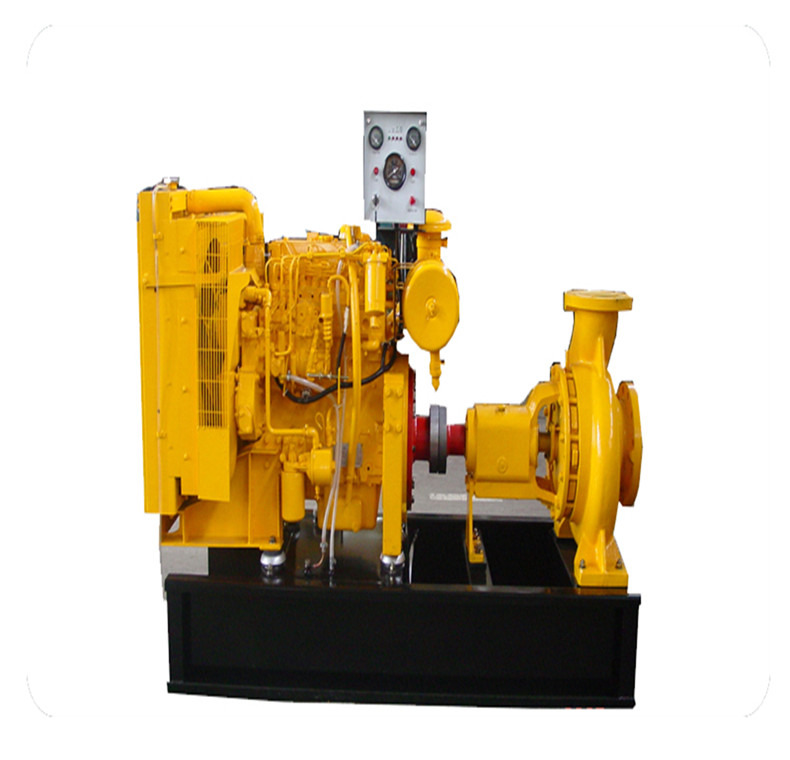

Diesel pumping Set series
The water pump unit products produced by Cenexe are powered by diesel engines of imported brands Perkins, Deutz, Volvo Penta, joint venture brands of Cummins, Japanese Yanmar, Lovol, etc., through high-elasticity couplings or diaphragm couplings It is directly connected with the water pump, and the automatic control of the diesel engine pump set is realized by the self-starting liquid crystal control module. Water pumps with different heads and flows can be equipped for customers to choose and use according to different needs.
Cenexe produces water pump units, which have the advantages of advanced and reasonable structure, high efficiency, good cavitation performance, low vibration, low noise, stable operation, reliability and convenient assembly and disassembly. Powerful performance is a strong guarantee for customer needs. Based on European technology and its own continuous analysis and improvement, Tianfa mobile pumping system provides excellent and powerful energy efficiency, and has passed the certification of a national third-party testing agency.
According to the purpose of pump unit products, it can be roughly divided into the following categories:
1. It is used as a standby main pump for fire fighting, called diesel engine fire water pump (this is the most common type);
2. For engineering purposes, such as pressure test for pipelines, high temperature water supply, etc.;
3. It is used for agricultural irrigation in areas without power supply, called self-priming non-clogging diesel engine self-priming pump;
Parameters
Model | TJSC44 | TJSC75 | TJSC108 | TJSC120 |
Prime power | 44/55 | 79/93.75 | 105/135 | 134/167.5 |
Engine | LOVOL | |||
Model | 1004-4TZ15 | 1004-4TZ03 | 1006-6TZ04 | 1006-6TAZ12 |
Prime Power | 44 | 75.6 | 108.4 | 134 |
Stand-by Power | 48 | 83.2 | 119.2 | 147 |
Number-of cylinde | 4 | 4 | 6 | 6 |
Cylinder Arrangement | Vertical inline | |||
Cooling system | Water cooled | |||
Asporation | Naturally | Turbo cooled | ||
Governor | Machine | |||
Bore*Stroke (mm) | 100*127 | 100*127 | 100*127 | 100*127 |
Displace ment | 3.99 | 3.99 | 5.99 | 5.99 |
Consumption rate (g/Kw*h) | ≤210 | ≤205 | ≤205 | ≤205 |
Lubrication oil consumption rate (g/Kw*h) | ≤1.05 | ≤0.42 | ≤0.42 | ≤0.42 |
N·M | 260 | 336 | 450 | 558 |
KGS | 35-42 | 45-54 | 60-73 | 88-94 |
Voltage | 400/230V | |||
Power factor | 0.8 lag | |||
Rated frequency (Hz) | 60 | |||
Rated speed (r/min) | 1800 | |||
Phase | 3 | |||
Fuel | Diesel | |||
Clutch | Any |
Tianjin Century Electronics Co,.Ltd (TCEC) is the first Chinese professional supplier of the power electronics and semiconductor devices, power unit and induction heating equipment since 1997. We have a global market network covering over 40 countries and regions. United States, Europe, South Asia, South Africa and Korea are the traditional markets. Meanwhile the emerging markets include Middle East, Africa and South America. Our main products are:
We're your eyes in China!
1. Power semiconductor devices: Thyristor, Rectifier, Diode, IGBT, GTO, Light Triggered Thyristor and component of Silicon Wafer, DCB and other material.
2. Power equipment of rectification and inversion.
3. Power semiconductor assemblies: rotating excitation, power factor reactive, pulse power supply.
4. MF/HF induction heating application and foundry casting plant.
With years of experience along with excellent quality, advanced services and competitive prices, TCEC has won numerous customers' trust and support.
